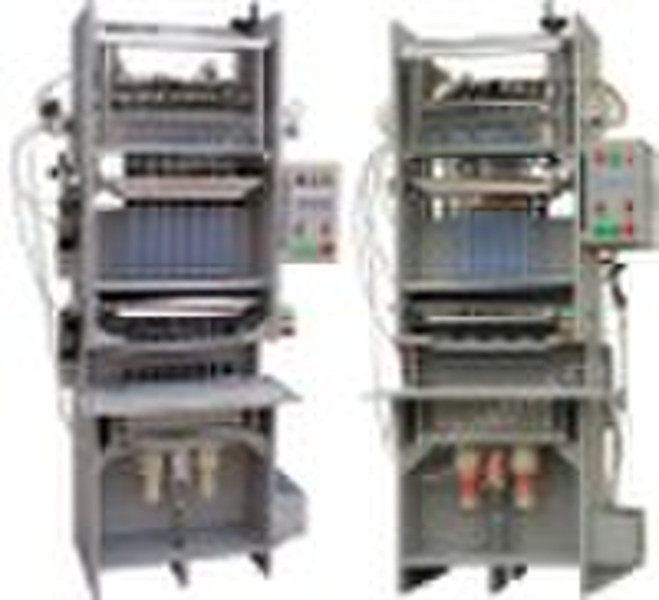

Microprocessors controlled vacuum filling machine

Feature ØAdopted advanced MCU control technology has touch interface ØMachine adopted advanced hydropneumatics,so machine running is steady,good repeatability ØPrecision Manufacturing Technology, high degree of accuracy; ØAcid resistant alkaliproof,long-life performance ØIt was composed of measuring cup and vacuum Ø16 tubes synchronous electric adjustment; ØHold battery upward move in place. Function 1.Automatic and manual work mode 2.Users will be set filling times and vacuum times,and adjust filling freely. 3.Users will be set in accordance with the parameters of time Technical Parameter 1.Power supply:220 250V/50 60Hz(for filling machine),380 415V/50 60Hz(for vacuum) 2.Gas supply:0.4 0.6Mpa 3.Precision of single tube acid filling:≤±0.3% 4.16 tubes acid filling consistency accuracy:≤±0.3% 5.Speed:1400pcs/h 6.The largest vacuum-0.09Mpa Format list Model Max filling of single tubeFilling modeSize mmsphere of application mAHW D H MTL-FCK10×16 10mL measuring cup vacuum750 720 2000 200 1000 MTL-FCK20×16 20mL400 2000
